Setup Email Server - Part 4

In previous posts we Listed the assets that we are using to setup the server, uploaded the encryption certificates and installed the email server components.
In this post we will enable SSL encryption for HTTPS and will test the email client (Outlook).
To enable SSL encryption for the https traffic in apache we first instruct apache to listen to port 443:

$ sudo vi /etc/httpd/conf/httpd.conf
# line 42
Listen 80 #already here
Listen 443 #add if not included

Also, will setup our domain name so apache knows it:

$ sudo vi /etc/httpd/conf/httpd.conf
# uncomment and setup:
ServerName inspiracode.net

Once we are listening to 443, the ssl configuration file comes to play with apache, so we will configure the certificates location in that file:

$ sudo vi /etc/httpd/conf.d/ssl.conf
# Line 71
SSLEngine on# Line 101
SSLCertificateFile /certs/public.pem# Line 108
SSLCertificateKeyFile /certs/private.pem

Remember that in a previous post we generated and transfer those certificate files to /cert/ directory.
For the certificate modules to be loaded by apache, we will need to install these packages:

$ sudo yum install mod_ssl openssl

Next, we will force all http traffic to use the https:

$ sudo vi /etc/httpd/conf/httpd.conf
# line 42
Listen 80
Listen 443<VirtualHost *:80>
RewriteEngine on
RewriteCond %{SERVER_PORT} !^443$
RewriteRule ^/(.*) https://%{HTTP_HOST}/$1 [NC,R,L]
</VirtualHost>

Finally we restart our apache server and https traffic will be enabled and forced:

$ sudo systemctl restart httpd

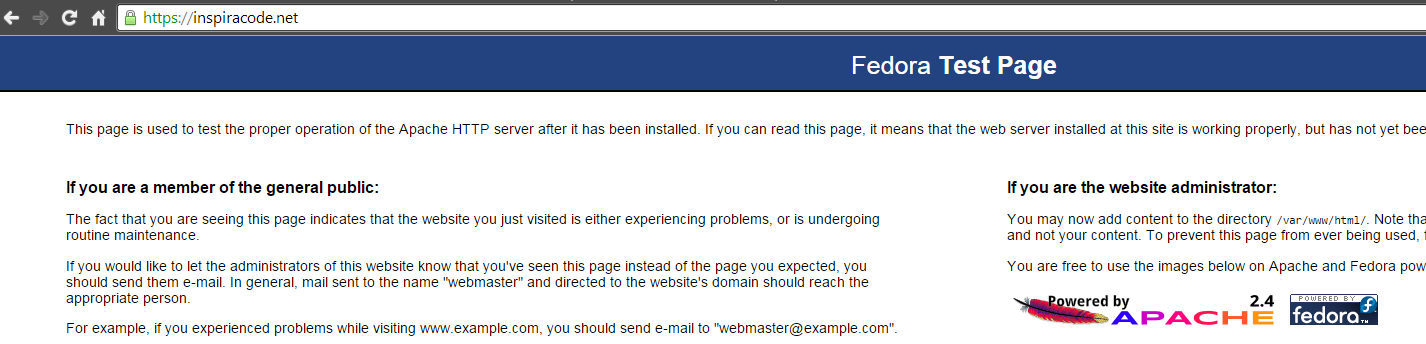

navigation to "https://inspiracode.net", when tryign "http://inspiracode.net" we get redirected:

Now that we have encrypted secure traffic with our server it is time to setup an email account and configure our client.
First, we will create our account using Linux:

$ sudo useradd support
$ sudo passwd support
#setup the new password for support user

Now we configure outlook to use this account:

1. Open outlook and goto file >> add account

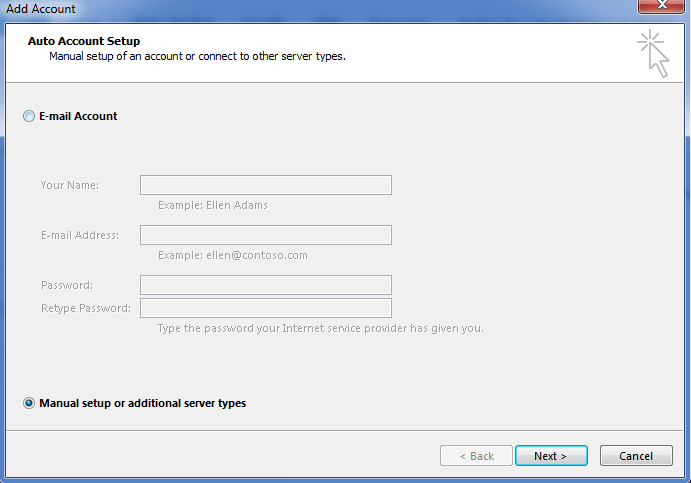

2. Select "Manual setup or additional server types"

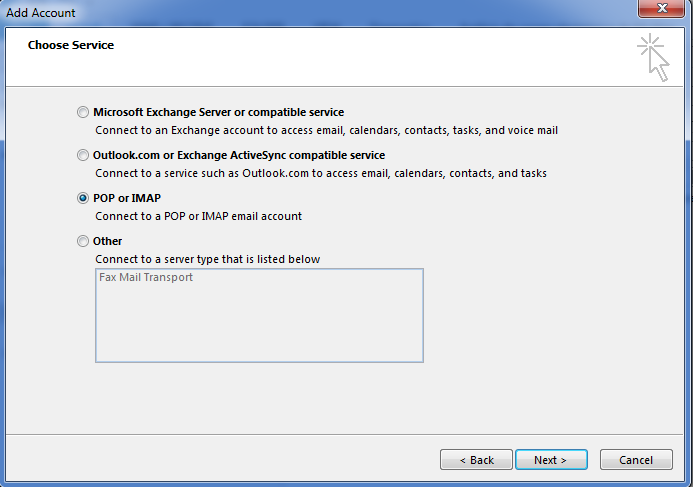

3. Select POP or IMAP

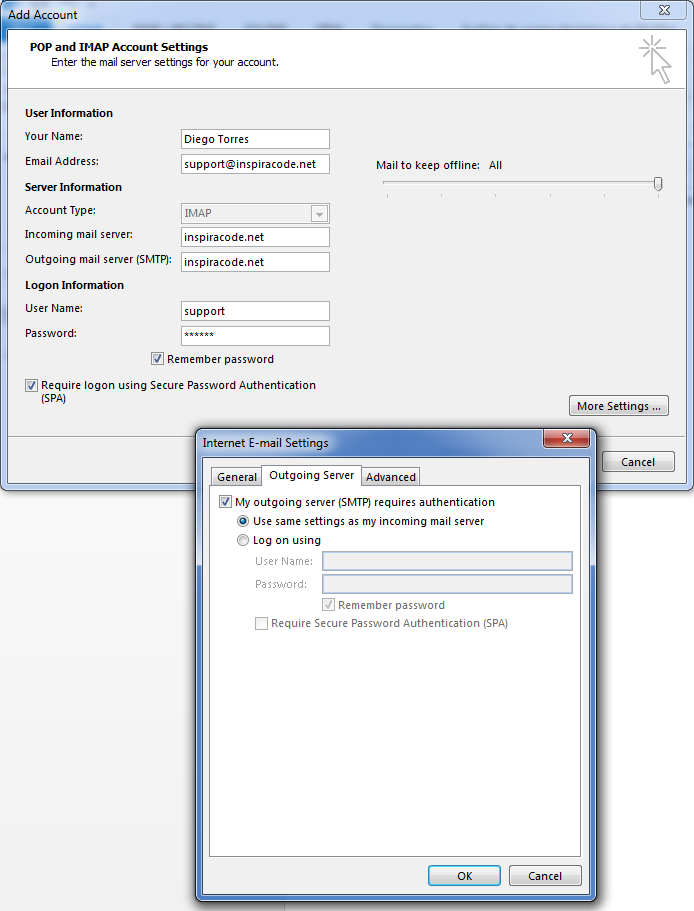

4. Select the account settings for your new installed account, including the server, user and password:

5. Select the more settings option and setup the outgoing server to be authenticated:

6. In the advanced tab of the more settings options, select the SSL encryption and the secure ports to be used:


Once completed, when you click next, you will receive the connection test results from outlook:

Now you can check your email using Outlook.
Keep tuned because in an the next post we will configure webMail client using RainLoop.
--D

Setup Email Server - Part 3

In previous posts, setting up an Email Server, we Listed the required assets and Uploaded the SSL certificates to the server
In this post we will install and configure Postfix and Dovecot to inbound and outbound email using IMAP protocol.

First thing is to remove sendmail from our server (the default MTA installed in our Fedora distribution):

$ sudo yum remove sendmail

Then we install postgres:

$ sudo yum install postgres

Once installed, we will configure to resolve to our domain and listen to our email ports:

$ sudo vi /etc/postfix/main.cf

Set the following values in the postfix main.cf:

$ sudo vi /etc/postfix/main.cf

# line 75:
myhostname = inspiracode.net # (your domain name)# line 83:
mydomain = inspiracode.net # (your domain name)# line 99:
myorigin = $mydomain

# line 113:
inet_interfaces = all

# line 118:

inet_protocols = ipv4

# line 165:
mydestination = $myhostname, localhost.$mydomain, localhost, $mydomain

# line 264:
mynetworks = 127.0.0.0/8

# line 419:
home_mailbox = Maildir/

# line 574:
smtpd_banner = $myhostname ESMTP $mail_name ($mail_version)

Note: using the vi editor, to show line number type:

:set nu

To go to a given line number type:

:[line number]

For example when going to line 100:

:100

At the end of the file add the following lines:

# limit an email size 10M
message_size_limit = 10485760# limit mailbox 1G
mailbox_size_limit = 1073741824#for SMTP-Auth settings
smtpd_sasl_type = dovecot
smtpd_sasl_path = private/auth
smtpd_sasl_auth_enable = yes
smtpd_sasl_security_options = noanonymous
smtpd_sasl_local_domain = $myhostname
smtpd_client_restrictions = permit_mynetworks,reject_unknown_client,permit
smtpd_recipient_restrictions = permit_mynetworks,permit_auth_destination,permit_sasl_authenticated,reject

# SSL/TLS
smtpd_use_tls = yes
smtpd_tls_cert_file = /certs/public.pem
smtpd_tls_key_file = /certs/private.pem
smtpd_tls_session_cache_database = btree:/etc/postfix/smtpd_scache

# use smtp2go as relay
# tryed gmail first, but changes FROM header to gmail address.
relayhost = [smtpcorp.com]:2525
smtp_sasl_auth_enable = yes
smtp_sasl_password_maps = static:user@smtpcorp.com:secret
smtp_sasl_security_options = noanonymous
smtp_tls_security_level = may
header_size_limit = 4096000

relay_destination_concurrency_limit = 20

Note: using the vi editor, to go to the last line type [G].
Also note the configuration for relayhost: As GoDaddy is blocking the outbound for email ports, we would be unable to send mail using our server to the world. One of our options is to keep trying to configure the REVERSE DNS records and research for port allowance options.
Instead, we have selected a relayhost provider (smtp2go).
You can use even your gmail, hotmail or any other private mail server account to relay your email, basically you will use that account to delegate the email sending functionality, postfix will be in charge of changing the headers for you, so the FROM field in your email looks like going from your account at this server (myaccount@inspiracode.net for me).
The problem that we faced with this approach was that when trying to use a gmail account, the resulting email remails with the gmail account in the FROM field, so when reaching it's destination, instead of showing myaccount@mydomain.com it was showing myaccount@gmail.com.
The problem was fixed opening a smtp2go account: for an affordable price, you can get a decent amount of email traffic. You actually have 20 daily free emails!
The trick is to configure the smtp_sasl options to connect to your account; in my case I'm using static option to specify username and password in the same configuration file.
If you have any troubles configuring this sasl options (or postfix not accepting them), try installing the following sasl tools:

$ sudo yum install cyrus-sasl cyrus-sasl-lib cyrus-sasl-plain

Now we Install Dovecot:

$ sudo yum install dovecot

Dovecot configuration
listening protocols and IP addresses ; . To configure dovecot execute:

$sudo vi /etc/dovecot/dovecot.conf
# line 24
protocols = imap pop3 lmtp# line 30
listen = * # ipv4 only (as goDaddy VPS does not give you an IPv6 address)

authentication methods

$sudo vi /etc/dovecot/conf.d/10-auth.conf
# line 100
auth_mechanisms = plain login

mail location

$sudo vi /etc/dovecot/conf.d/10-mail.conf
# line 30
mail_location = maildir:~/Maildir

postfix smtp-authentication

$sudo vi /etc/dovecot/conf.d/10-master.conf
# line 96-100
unix_listener /var/spool/postfix/private/auth {
mode = 0666
user = postfix
group = postfix
}

email traffic encryption

$sudo vi /etc/dovecot/conf.d/10-ssl.conf
# line 8
ssl = yes#line 14, 15
ssl_cert = </certs/public.pem
ssl_key = </certs/private.pem

Note the location of the certificates, that's the location that we stated in the last post.
Finally we will install a log tool:

$sudo yum install rsyslog

With those tools installed now we enable our email server to start on reboot:

$sudo systemctl enable rsyslog
$sudo systemctl enable postfix
$sudo systemctl enable dovecot

Finally we start the server components:

$sudo systemctl start rsyslog
$sudo systemctl start postfix
$sudo systemctl start dovecot

Your server should start smoothly, if it does not, please feel free to post your issue.
You can see what's up with your email server by looking at it's log at:

$sudo tail -f /var/log/maillog
or
$sudo less /var/log/maillog
[F] - To tail the file
[G] - To go to the last line

In the next post we will setup HTTPS and email client.
Regards.
--D
